Allows you to split the workflow into two branches based on if/else conditions.
A conditional branching node has three parts:
True
, execute the IF path.False
, execute the ELSE path.True
, execute the ELIF path;False
, continue to evaluate the next ELIF path or execute the final ELSE path.Condition Types

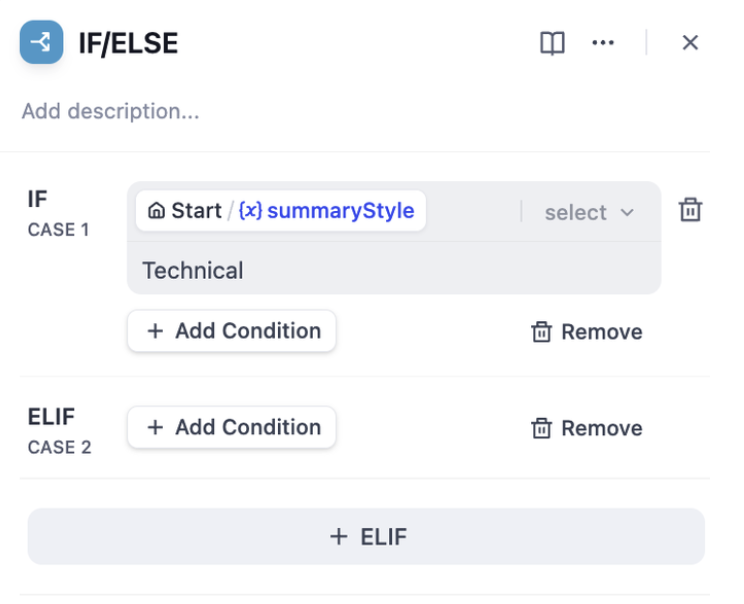

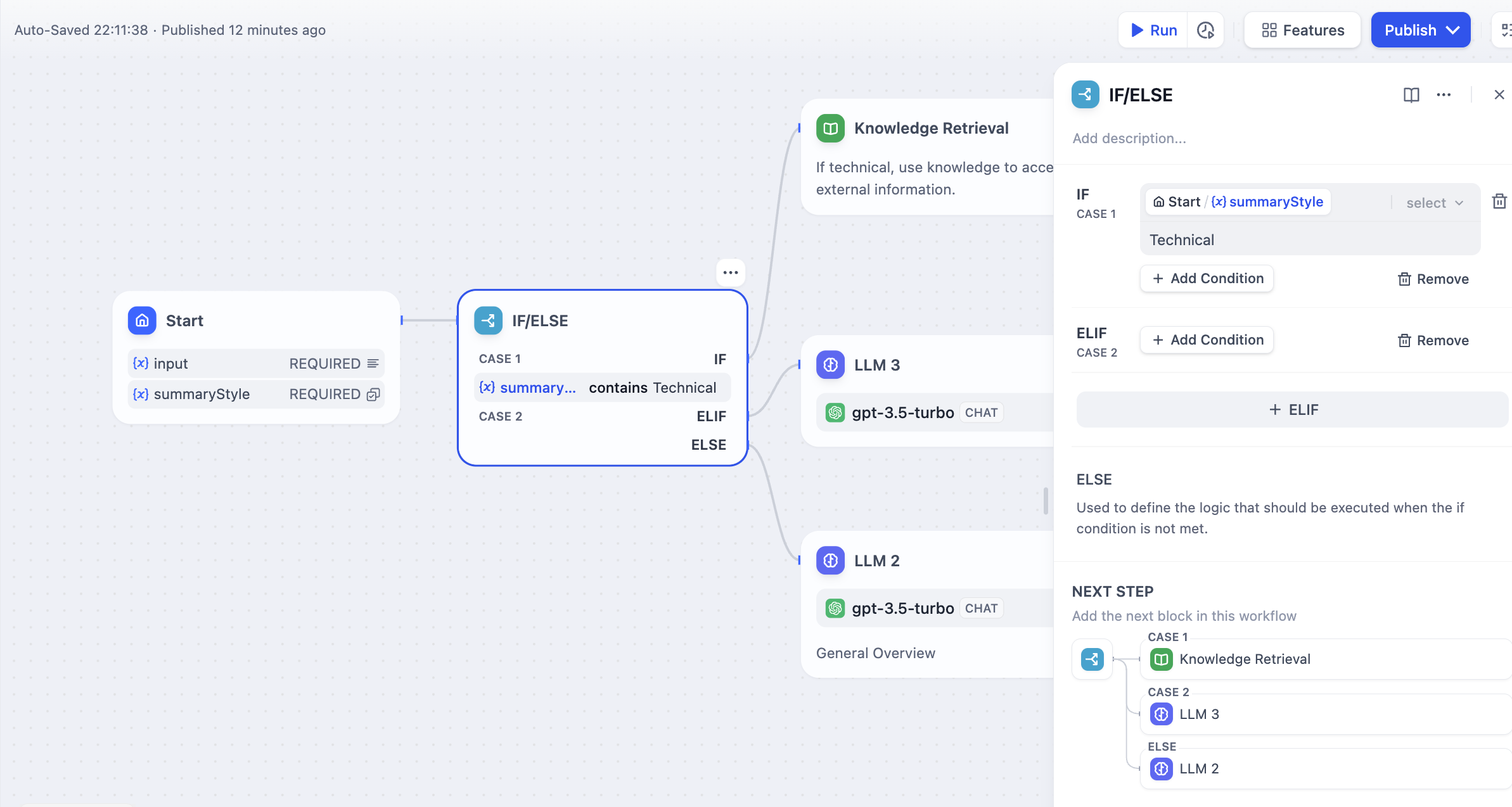

Taking the above Text Summary Workflow as an example:
summarystyle
variable from the start node, with the condition Contains technical
.True
, follow the IF path by querying technology-related knowledge through the knowledge retrieval node, then respond via the LLM node (as shown in the upper half of the diagram);False
, but an ELIF
condition is added, where the input for the summarystyle
variable does not include technology
, yet the ELIF
condition includes science
, check if the condition in ELIF
is True
, then execute the steps defined within that path;ELIF
is False
, meaning the input variable contains neither technology
nor science
, continue to evaluate the next ELIF
condition or execute the final ELSE
path;False
, i.e., the summarystyle
variable input does not contain technical
, execute the ELSE path, responding via the LLM2 node (lower part of the diagram).Multiple Condition Judgments
For complex condition judgments, you can set multiple condition judgments and configure AND or OR between conditions to take the intersection or union of the conditions, respectively.
